FluoroGRID: Real-Time 3D Vascular Deformation from Monocular Fluoroscopy

Estimates patient-specific 3D neurovascular deformation from a single fluoroscopic view by fusing image evidence, pre-operative anatomy, and camera geometry.

FluoroGRID: Real-Time 3D Vascular Deformation from Monocular Fluoroscopy
status: manuscript in preparation tag: Surgical Robotics tag: Medical Imaging tag: 3D Vision tag: Physics-Informed ML
category at carnegie mellon
priority 1
site_role featured_work
open source

summary

My master’s thesis work at CERLAB under Dr. Kenji Shimada, with doctoral candidate Rishi Basdeo and collaborators at the University of Pittsburgh and UPMC. FluoroGRID estimates patient-specific 3D vascular deformation from monocular fluoroscopy in real time, combining live image evidence with pre-operative anatomy, camera geometry, and sparse vascular control points.

Initial results were presented at the 2nd International Workshop on the Evolving Landscape of Surgical Robotics (ELSR), IEEE/RSJ IROS 2026, and a full manuscript is in preparation for IPCAI 2027 / IJCARS.

problem

During endovascular procedures, a guidewire is navigated through blood vessels under live X-ray. As the wire advances, it deforms the vessel wall. Predicting that deformation before it becomes unsafe requires recovering 3D vessel displacement from a 2D fluoroscopic projection, which is a severely ill-posed inverse problem.

The clinical constraint makes it harder: intra-operative guidance is only useful if the estimate arrives in real time, and only trustworthy if the predicted deformation is physically plausible rather than merely well-fit to the image.

approach

Since ground-truth intra-operative 3D vessel deformation does not exist at scale, I generate it synthetically using physics simulation.

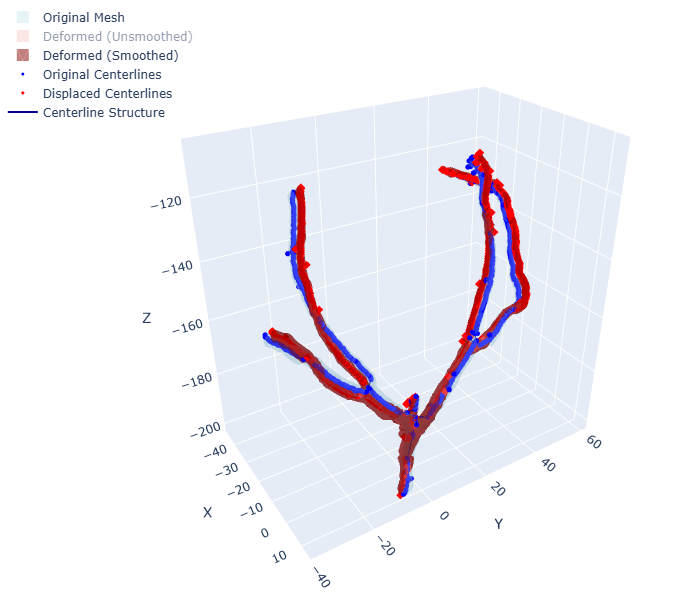

Synthetic centerline deformations generated via free-form deformation (FFD). Each frame captures a unique vessel state driven by guidewire interaction physics.

The pipeline produced over 370,000 paired 3D–2D training examples spanning diverse viewing geometries and deformation conditions. Each simulated frame yields:

  • Sparse 3D displacement fields at control points along the vessel centerline
  • Multi-view synthetic X-rays across clinically relevant projections such as AP, Lateral, LAO45, RAO45, Spider, and RAO30_Caudal20
  • Physics metrics including maximum displacement, mesh strain ratio, and vessel straightening percentage

I built an auditing tool to validate the physics integrity of the generated dataset, verifying that mesh strain stays within the clinical safety threshold of 1.15 and that the simulated deformations remain physically meaningful.

quad-encoder architecture

FluoroGRID is a geometric deep learning system with four encoders, each supplying a different kind of evidence about the same vessel state:

  • Image encoder — ResNet features from the single-channel fluoroscopic frame
  • Graph encoder — ordered-chain graph representation of the vessel centerline, preserving its connectivity
  • Mesh encoder — sampled geometry from the patient’s pre-operative vascular surface
  • Acquisition encoder — fluoroscopic camera and projection metadata

Fusing anatomy and acquisition geometry alongside the image is what makes the inverse problem tractable: the network is not asked to hallucinate depth from pixels alone, but to deform a known patient-specific geometry consistently with what the projection shows.

geometry-aware objectives

Training uses a composite objective that enforces both accuracy and physical plausibility:

  • Differentiable projection — predicted 3D deformation must reproject consistently onto the observed fluoroscopic view
  • Structural smoothness — deformation varies smoothly along the centerline rather than jumping between adjacent points
  • Curvature constraints — discrete differential geometry terms keep the deformed vessel shape anatomically plausible
  • Strain capping — the clinical safety threshold of 1.15 is embedded directly in the loss, preventing predictions that would imply unsafe force on the vessel wall

current result

FluoroGRID achieves sub-millimeter reconstruction precision at real-time inference speed, which is the combination that matters for intra-operative use. The system covers the full loop: physics-grounded synthetic deformation generation, multi-view X-ray rendering, dataset auditing, quad-encoder model training, and evaluation across viewing geometries.

Related outputs from this thread include a CMU Graduate Research Forum poster on physics-regularized deep graph networks for thrombectomy deformation, and a review of robotics in autonomous and remote neuroendovascular intervention currently under review at the Journal of Intelligent and Robotic Systems, for which I wrote the vision subsection.

limitations

  • No large-scale real intra-operative ground-truth deformation dataset exists yet, so validation leans on synthetic physics
  • The current formulation focuses on centerline motion rather than full vessel wall mechanics
  • Blood flow and force thresholds are not yet coupled to the deformation estimate

next steps

  • Physics-informed synthetic data generation (FFD + guidewire kinematics)
  • Multi-view X-ray rendering pipeline (6 clinical projections via gVXR)
  • Dataset physics auditing and validation
  • Quad-encoder FluoroGRID architecture and training pipeline
  • Workshop presentation at ELSR, IEEE/RSJ IROS 2026
  • Full manuscript submission (IPCAI 2027 / IJCARS)
  • Synthetic contrast injection to reduce chemical contrast agent dose
  • Blood flow fluid dynamics integration for force threshold estimation
  • Validation against real intra-operative fluoroscopy sequences
