Neural Anisotropic Diffusion for Medical Image Relaxation

Project Status: Completed

Project Overview

Medical image denoising faces a strict tradeoff: removing heavy noise without erasing the underlying anatomical structure. Standard filters often blur critical features like tumor margins and tissue boundaries.

This project explores an edge-aware restoration technique by unrolling the classical Perona-Malik Partial Differential Equation (PDE) into a neural network. Instead of relying on fixed, rigid mathematical rules for diffusion, this model uses a lightweight Convolutional Neural Network (CNN) to learn spatially varying conduction coefficients directly from the local image context.

The Core Idea

Traditional Anisotropic Diffusion works like a “smart blur”—it diffuses pixels in flat regions but stops blurring when it detects an edge. However, mathematical edge-detectors are easily fooled by heavy medical noise (like Speckle or Rician noise), leaving artifacts behind.

The Neural Approach:

1. Unroll the Loop: We unroll the iterative PDE update process into an end-to-end differentiable network.
2. Context-Aware Guidance: We use a MiniUNet to extract global structural context (identifying where the skull, tumors, and white matter are).
3. Learned “Smart Gates”: A Conduction Network analyzes directional gradients (4 or 8-neighborhood) combined with the global context to predict weights between 0 and 1. These weights act as gates, dynamically telling the diffusion equation exactly where to blur and where to protect a boundary.

Architecture Highlights

• Input: Noisy Brain MRI slices.
• Guidance Encoder: MiniUNet extracts robust structural features.
• Directional Gradients: Calculates pixel intensity differences across 4 or 8 local neighborhoods.
• Conduction Network: Learns the spatial diffusion weights.
• Residual Refinement: An optional final stage to polish micro-textures and correct color shifts after the PDE loop.
• Loss Function: Designed to aggressively protect edges while smoothing noise: Loss = SSIM + L1 + (0.1 * Gradient Loss)

Dataset & Training Setup

• Dataset: Br35H Brain Tumor Dataset (3,000 MRI slices).

• Split: 2,100 Train

  450 Validation

  450 Test.

• Corruptions: Synthetically corrupted using Gaussian, Rician, and Speckle noise.

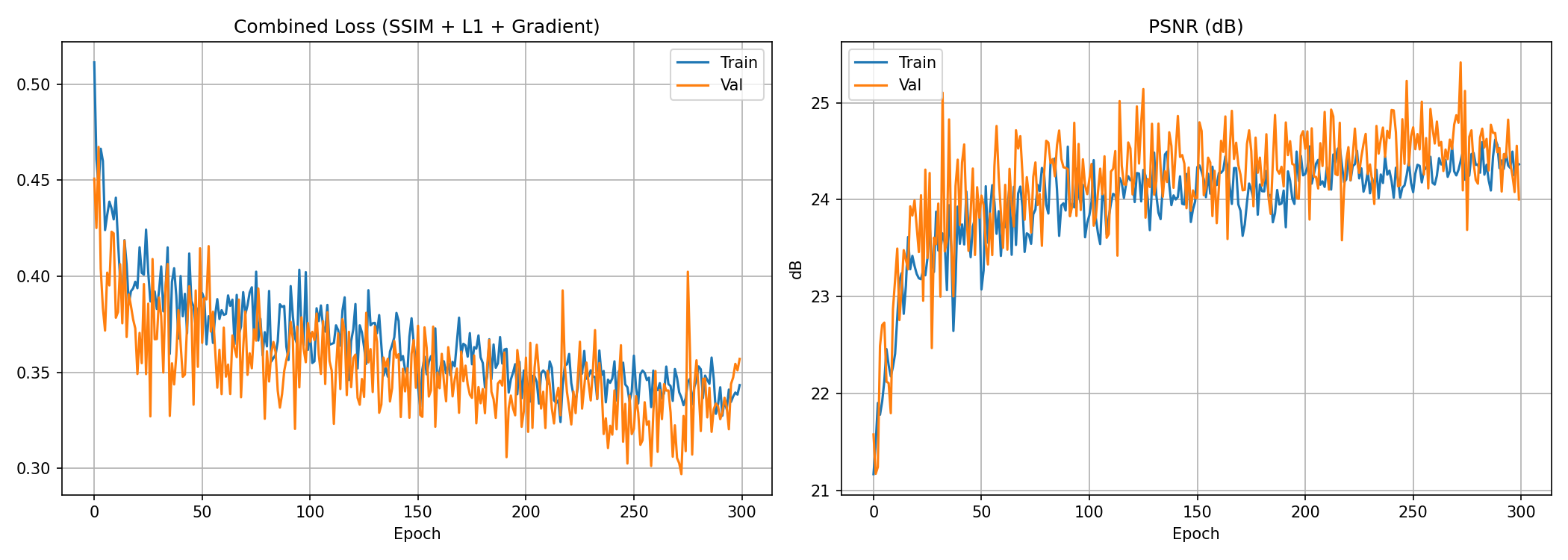

• Optimization: Cosine annealing learning rate scheduling and gradient clipping for PDE stability.

Results

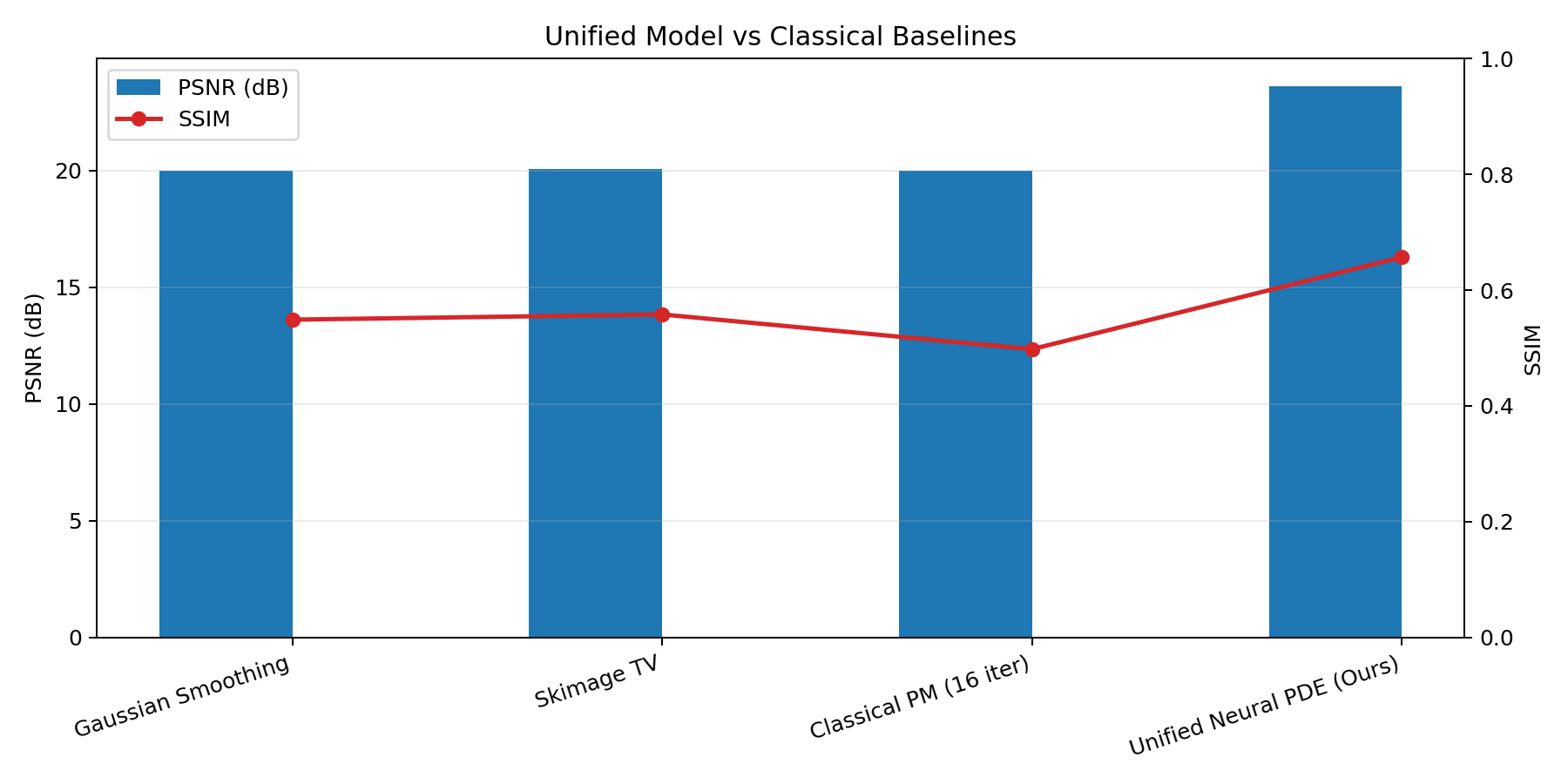

The Unified Neural PDE significantly outperformed classical, non-learned baselines. Because traditional algorithms lack semantic context, they hit a performance ceiling around ~20 dB PSNR. By learning the specific visual signatures of brain tissue, our approach shattered that ceiling, reaching nearly 25 dB.

Note: The model successfully reduced noise and preserved large-scale contrast and tumor boundaries, outperforming the best classical baseline (Non-Local Means) by +4.46 dB PSNR.
